VTOL VTBIRD User Manual

Download User Manual Here: Updated on 04.Dec.2021

 Finwinghobby VTBIRD VTOL User Manual for Tilt Rotor and 4+1

------------------------------------------------------------------------------------------------------------

What  Flight contoller ? :

Currently we don't Produce Flight Contoller, don't sell Flight Controller, Don't answer Flgith contoller related Questions

Generally most of  us use Open source flight contoller, you cab find FC Vendors' listing here:

Recomemd to look at the Brand: CUAV,  Qiotek. Hex pixhawk, holybro pixhawk and more..........

https://ardupilot.org/ardupilot/docs/common-stores.html

But if your flight controller is not Open source please brush aside it !

------------------------------------------------------------------------------------------------------------

What  Firmware ? :

if you are going to use Open Source  Flight controller, you can download Firmware from Here:

What VTOL use is the the same as Plane' firmware:  Arduplane

Set Q_Enable to 1  will came out Q_*****related VTOL parameter, if set to 0 is for airplane alone

https://firmware.ardupilot.org/Plane/

But if your flight controller is not Open source please brush aside it and ask your flight contoller supplier directly

------------------------------------------------------------------------------------------------------------

VTOL Both 4+1 and Tilt Rotor Parameter Download

updating on 1/12 2020 (this is open Source Flight Contoller)

VTBIRD VTOL Parameter and Configurations 20201201

Wanning: don't fully copy all Paramter , don't input all parameter directly,  this is only for learning and reference

------------------------------------------------------------------------------------------------------------

Professional VTOL UAV Aircraft for:



*Mapping



*Surveying



*Rescue

*Forest,River and Boarder Partrol

Finwing VTBIRD VTOL Specifications:

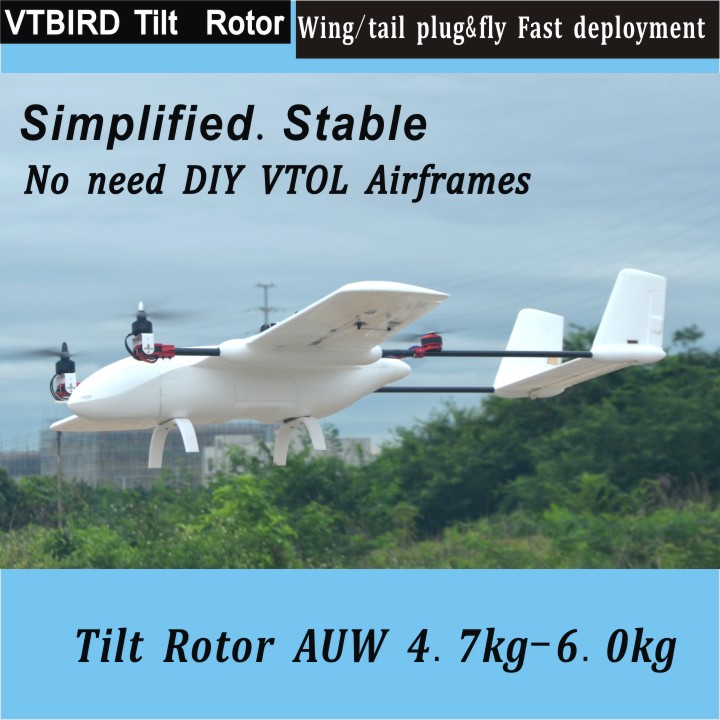

WingSpan: 1600MM (63 inch)



Length: 1300MM (51 inch)



WingArea: 40 SqDM



Material: EPO Airframe, Carbon Fiber and lots of 3K Carbon Fiber Spars and  CNC Aluminium Alloy VTOL Parts

Kit weight: 1.05kg (including VTOL 3K Arm but not including VTOL CNC parts)

Flight time: 1-2 hours

Flight range: 90-120KM (testing proved)



VTOL Frame Tilt Rotor AUW: 4.5kg-6.0kg (Max. 6.0kg)

VTOL Frame  4+1 AUW: 4.5kg-5.5kg (Max. 5.5kg)

Payload: 0.4kg-0.8kg

Why TiltRotor Max, upto 6.0kg, 4+1 is 5.5kg ? it's nothing to do with Airplane but becuase of the Propeller,  Tilt Rotor can use 14" 15" propellers but 4+1 can only use 12" propellers, becuase space limited by the pusher propellers, can't use bigger propellers, except you can find a motor which can support enough thrust by 12" propellers.

( we have figured out new solutions upgraded 4+1 to bigger propeller, VTOL 13" and pusher 14" )



if you ask me which one recommend? 4+1 or Tilt Rotor?

Firstly please refer to my Endurance testing conclusions perhaps you will learn more after reading

#Air frame weight of 4+1 and Tilt Rotor is almost the same after finally building finished,

#Tilt Rotor looks complex becuase have to add two Tilt gears but actually easy to adjust, we will have video to introduce how to adjust the Tilt servo angle properly

#Tilt Rotor can use bigger props Max. flight weight should be a little more than 4+1

Finally depends on what you want and what's for target?  if you are want to a VTOL platform to practice, testing flight controller, fun to fly and VTOL beginner is indeed good to choose 4+1. but if you want to fly heavier with more playload capability then Tilt Rotor would be better.



Aileron and Elevator servo:

3PCS  DM17(20g) Digital Metal gear servos

https://finwinghobby.com/goods.php?id=72

ESC for VTOL 4 Motors:

4PCS  40A 2-6S Customized 300mm 16AWG power wires

BEC: 5-6V 6A

https://finwinghobby.com/goods.php?id=71

Pusher ESC: 60A (OPTO)



What is VTBIRD VTOL Frame Tilt Rotor kits including?

*Plane Airframe Kits

*Tilt Rotor CNC parts and 3K Arms.

*No need user to DIY building, just in stalling Electronics

 NO Electronic parts

 Landing gear show by the photos not included





What is VTBIRD VTOL Tilt Rotor kits+ Power combo instead of complete PNP!

Power combo including folllowing electronic devices:

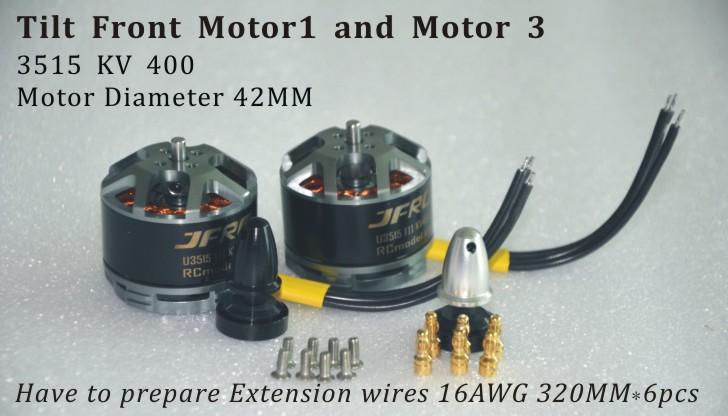

1> 2PCS Brushless Motor 3515 KV 400

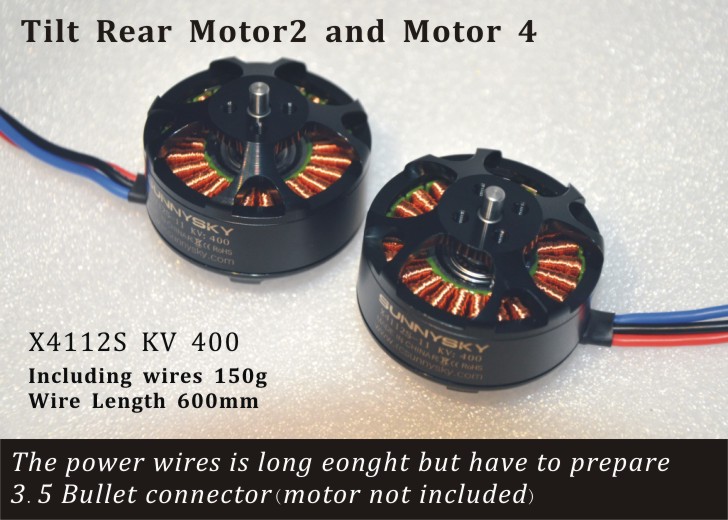

2> 2PCS Brushless  Motor X4112S  KV 400

3> 4PCS  ESC 40A 2-6S Customized 300mm 16AWG Power wires

4> 3PCS DM17(20g) Digital metal gaer servos for Aileron and Elevator

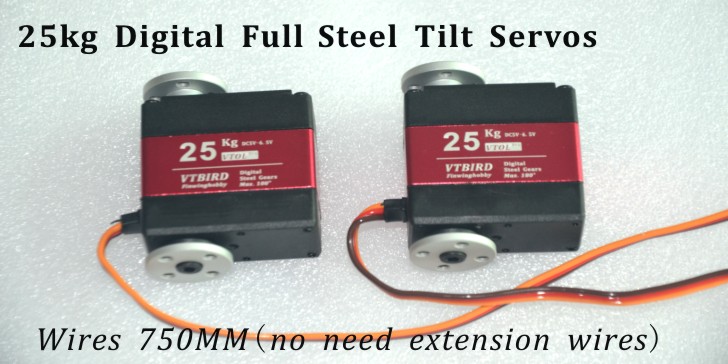

5> 2PCS 25kg Digital Full Steel  for Tilt Rotor Servo

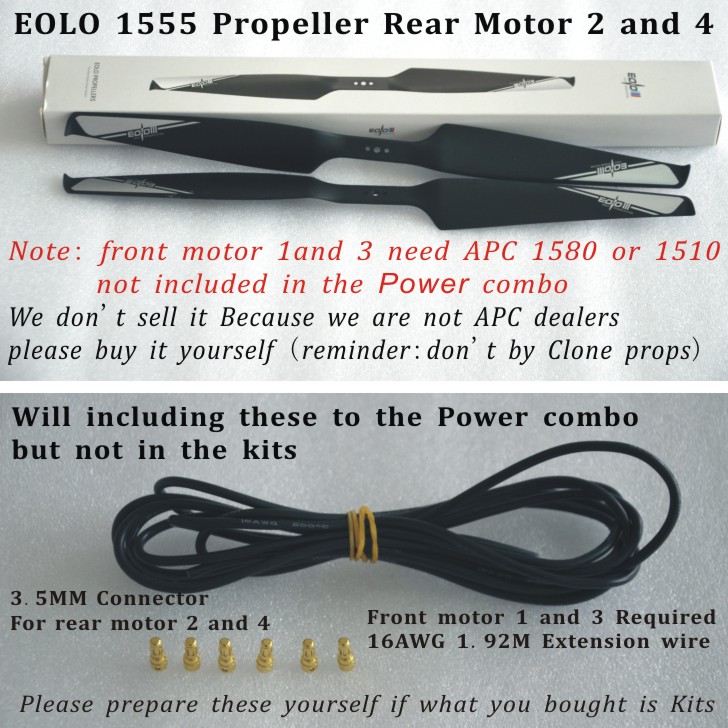

6> Eolo 1555 Propeller 1PCS CW+1PCS CCW

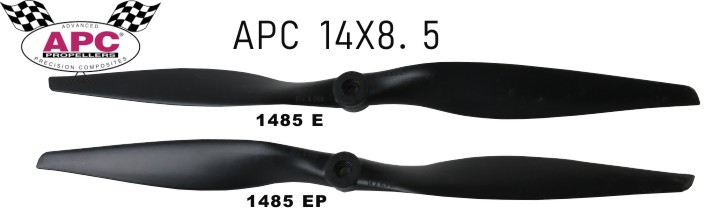

7> APC 1485 Propeller 1PCS  1485EP+1PCS 1485E (newly added)

8> Extra extension wire 1.92M and Metal 3.5 bullet

What else you will need for a complete power system ?

#1.don't have BEC, (better to be 5.5V- 6V supply to Tilt servo) then you have to buy a BEC,

#2. Battery 6S 16000-25000mash

#3. flgiht controller, reomote controller and other device you will need to learn and buying youself

--------------------------------------------------------------------------------------------------------

Landing gear show by the photos not included it's 3D Print landing gear,  you can download the 3D print file here to print it your self or buy it separately.  Reminder: setting "Filling rate" at 20%.

Download 3D print file Here

3D Print introductions(read me before Print)

------------------------------------------------------------------------------------------------

VTBIRD is a 4 in 1  Versatile vehicle both for Fixed wing and VTOL Quad-plane. It was designed for  FPV . Professional VTOL UAV Aircraft for Air Mapping, Surveying, Rescue and  Air Partrol. the best portable and simplified Design to meet both traditional planes and Quad-planes, Possibility of lowest cost investment and less weight added to the plane compared with existing other vehicles if you want to Own a VTOL.

 VTBIRD VTOL Flight Video:

https://youtu.be/8kzBNQy-lwE



https://youtu.be/jd04QeJcwRY



https://youtu.be/SZc8WH80fuA





VTOL Tilt Rotor 112km Range The first time Endurance testing

https://youtu.be/zrhjfDCIU3Y



VTBIRD VTOL Tilt Rotor Endurance testing and Configurations









Note:

if Tilt Rotor want to fly upto 6.0kg, it's better use Propeller Front 1580 , Rear 1655















































Fast Sea shipping Top Priority TO USA cost around 30 days except Customs extra inspections will cost more days
